Overview
Pendulum Instruments High Voltage Linear Amplifiers are general purpose broadband linear amplifiers having a fixed or variable amplification, and capable of bipolar or unipolar output. The amplifiers outputs are linear from DC up to Megahertz range, and exist in Single-Channel and Dual-Channel versions.
Pendulum Instruments High Voltage Linear Amplifiers are valuable tools, for research institutes, R&D labs and component manufacturing industries, in a wide range of applications. Common examples are driving piezo actuators, MEMS, OLEDs, liquid crystals, etc.
The amplifiers are designed to drive resistive and/or small capacitive loads. The output is equipped with a current limiting circuit that withstands accidental short-circuits.
Benefits
- Ultra-linear Amplifiers from 70Vp-p up to 800Vp-p
- High output power, up to 2A output current
- High Bandwidth, up to 5 MHz
- High Slew rate, up to 500V/μs
- Low output impedance, down to 0.1 Ohm
- Wide range of models to suit any performance and/or budget demand
Our Single Channel High Voltage Linear Amplifiers
-
Single Channel High Voltage Linear Amplifier F10A
-
Single Channel High Voltage Linear Amplifier A800
-
Unipolar Variable Gain High Speed Amplifier F70PV
-
High Voltage High Current Linear Amplifier P200
-
Variable Gain High Speed Linear Amplifier F30PV
-
High Voltage High Current Linear Amplifier P150
-
High Voltage High Current Linear Amplifier P100
-
Single Channel High Voltage Linear Amplifier A400
-
Single Channel High Voltage Linear Amplifier A600
-
Single Channel High Voltage Linear Amplifier F20A

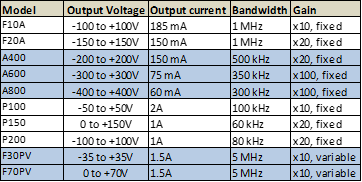

Single-channel Amplifier selection
We offer a wide range of Single-Channel High-Voltage Linear Amplifiers to suit any performance demand for Output voltage, Output current, Speed/Bandwidth and/or budget.
Select your Amplifier from one of our 4 series:
F-series (F10A, F20A) – Low Cost series
A-series (A400. A600, A800) – High Voltage series
P-series (P100, P150, P200) – High Power series
PV-series (F30PV, F70PV) – High Speed series
Explore details of the individual models to the right.

For Dual-Channel Amplifiers, please visit Dual Channel High Voltage Linear Amplifiers
